Maths for Games — Ship Builder • Year 2 • Build + Flight (WIP)

Overview

A two-phase technical project for my Maths for Games module. The Build Phase lets you assemble a ship on a 3D grid using my own math types (vectors/quaternions/TRS). The Flight Phase reconstructs the saved layout into a physical craft, computes COM/inertia, maps thrusters to controls, and flies in a low-gravity asteroid field with spatial-hash broad-phase and swept-sphere collision resolution. Work in progress.

Build Phase

• Snap-to-grid placement and discrete rotation with a preview ghost; commit to build.
• Orbit/zoom build camera focused around a point; scroll zooms toward cursor hit.

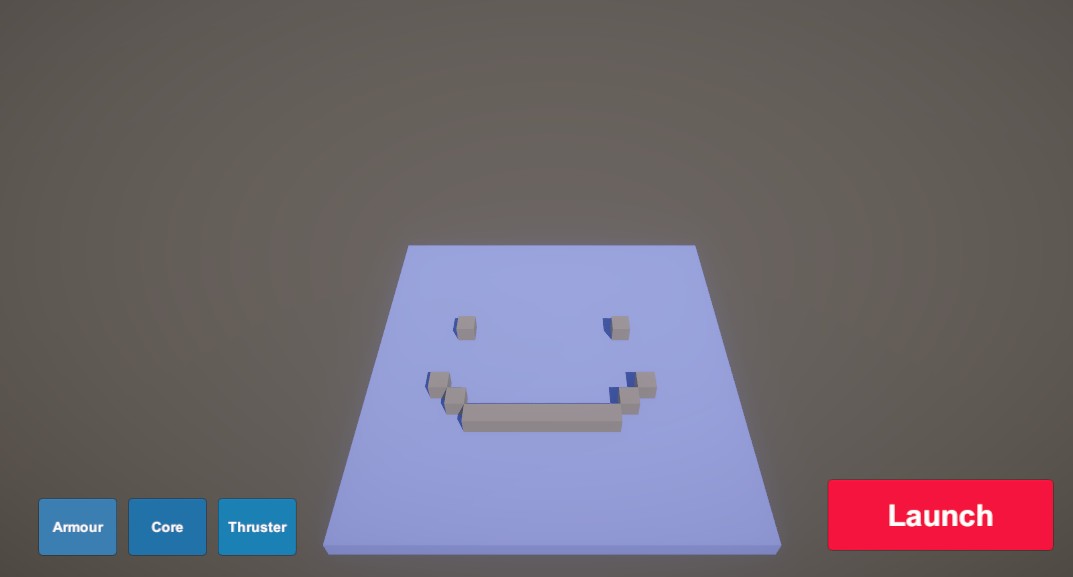

• Hotbar selects part data; save pipeline serialises grid position + rotation (TRS) for each part.

Footage

Image Gallery

Flight Phase

The flight scene reconstructs the saved ship, recentres on its computed centre of mass, calculates a diagonalised moment of inertia, and flies using forces/torques from distributed thrusters. The scene also spawns drifting asteroids and runs a spatial-hash broad-phase with per-frame swept sphere checks to resolve collisions.

Rebuild ship from save

A spawner reads serialised part entries (type, grid position, rotation) and instantiates the ship, grouping any disconnected fragments into separate movers.

// FlightShipSpawner — rebuild ship from ShipSaveData, centre on COM, split fragments
ShipSaveData data = LaunchManager.Instance.savedShip;
foreach (var partData in data.parts) {
  // pick prefab by type; compute TRS(partData.gridPosition, partData.rotation, 1)
  // place/rotate, parent under ShipRoot, register into ShipMover
}
mover.CenterOnCOM();
// find disconnected clusters -> keep main cluster on ShipRoot, spawn loose fragments

See the spawner and save format definitions.

Low-G flight, thrust & torque

Each thruster contributes a force and a torque τ = r × F relative to COM; inputs map to canonical directions, and angular velocity integrates into a quaternion delta each frame.

// ShipMover — integrate forces/torques; update rotation via angular velocity
MyVector3 totalForce = 0, totalTorque = 0;
foreach (var t in thrusters) {
  if (Input.GetKey(t.assignedKey)) {
    MyVector3 F = t.thrustDirection * thrustPower;
    totalForce += F;
    totalTorque += MyVector3.Cross(t.localPosition, F);
  }
}
velocity += (totalForce / ComputeTotalMass()) * Time.deltaTime;
position += velocity * Time.deltaTime;

MyVector3 angAcc = new MyVector3(
  totalTorque.x / max(momentOfInertia.x, 0.01f),
  totalTorque.y / max(momentOfInertia.y, 0.01f),
  totalTorque.z / max(momentOfInertia.z, 0.01f)
);
angularVelocity += angAcc * Time.deltaTime;
MyQuaternion dq = ShipMover.FromAngularVelocity(angularVelocity * Time.deltaTime);
transform.rotation = (dq * currentRotation).Normalize().ToUnity();

Thruster mapping, COM recentring, inertia calculation, and update loop.

Camera chase (quaternion orbit)

A chase camera orbits the target using custom Euler→Quaternion math; position lerps for smoothness, then LookAt target.

// FlightCamera — yaw/pitch control, quaternion orbit, smooth follow
yaw += mouseX * sens; pitch = clamp(pitch - mouseY * sens, -80, 80);
MyQuaternion q = EulerToQuaternion(pitch, yaw, 0);
MyVector3 desired = targetPos + q.Rotate(new MyVector3(0, 0, -distance));
currentPosition = Lerp(currentPosition, desired, smooth * Time.deltaTime);

Asteroid field & motion

Procedural asteroid spawning with random scale/velocity; inertia approximated as a solid sphere. Boundary bounce reflects velocity against an outer sphere.

// AsteroidSpawner — random prefab, scale/mass, velocity; add AsteroidMotion if missing
GameObject asteroid = Instantiate(prefab, pos, rot);
motion.velocity = randomDir.Normalize() * Random.Range(30f, 80f);
motion.radius = boundsExtentsMagnitude * scale;
motion.mass = Lerp(100f, 1000f, scaleT);

// AsteroidMotion — integrate position + rotation; boundary reflection
position += velocity * dt;
MyQuaternion dq = ShipMover.FromAngularVelocity(angularVelocity * dt);
rotation = (dq * rotation).Normalize();
// reflect if leaving spherical boundary
if (distFromCenter > boundaryRadius - radius) {
  MyVector3 n = toCenter.Normalize();
  velocity = velocity - n * 2f * MyVector3.Dot(velocity, n);
}

Spatial hashing & swept collisions

Broad-phase uses a spatial hash (voxel grid) to restrict pair checks, then per-cell swept sphere tests for continuous collision with time-of-impact and post-collision integration.

// SpatialHashGrid — hash + neighborhood query
Vector3Int HashPosition(MyVector3 p) => floor(p / cellSize);
Add(collider) -> grid[HashPosition(collider.position)].Add(collider);
GetNearby(p) -> gather 27 neighboring cells

// CollisionManager — for each cell, do swept-sphere tests; resolve at TOI, then finish step
if (MyCollision.SweptSphereCollision(a.pos, a.vel, a.r, b.pos, b.vel, b.r, dt, out float toi)) {
  a.pos += a.vel * toi;
  b.pos += b.vel * toi;
  // resolve (impulses, angular response), then advance remaining dt - toi
}

Extras

• Base asteroid data wrapper (mass/radius) for runtime sync with motion.
• Ship data format used by both phases (parts with grid pose + rotation).

Flight Phase Footage

Reflection

Building the toolchain forced me to implement TRS, COM/inertia, quaternion deltas from angular velocity, and continuous collision in a way that plugs straight into gameplay. Next up: damage → detachment → drifting clusters interacting with asteroids; thrust limits, fuel, and better visualisation of force/torque vectors.

Note: Active WIP. Build and Flight phases will continue to evolve through profiling and iteration.
